✔ In Stock ASRock

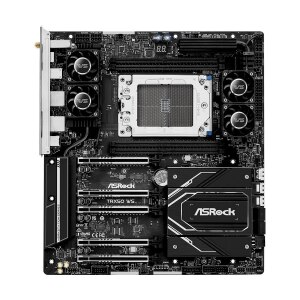

ASRock TRX50 WS - Motherboard - E-ATX - Socket sTR5 - AMD TRX50 chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - Onboard graphics (CPU required)

ASRock AMD motherboards

ASRock TRX50 WS - Motherboard - E-ATX - Socket sTR5 - AMD TRX50 chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - Onboard graphics (CPU required)

ASRock TRX50 WS - Motherboard - E-ATX - Socket sTR5 - AMD TRX50 chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - Onboard graphics (CPU required) - HD Audio (8-channel)

Article No. 11073882

GTIN / EAN 4710483944529

Manufacturer No. 90-MXBN40-A0UAYZ

Manufacturer ASRock

Category AMD motherboards

Low stock level
Delivery time: 2 - 4 Workdays Other countries

Technical Specifications

🔲SocketSocket sTR5

Price incl. VAT

€ 578,92

incl. 20% VAT , plus

🔒 SSL secured ↩️ 14-day return policy 🚚 Shipping from € 5.90 🏆 Service requests via webshop

General

Product type

Motherboard - E-ATX

Chipset

AMD TRX50

Processor socket

Socket sTR5

Max. number of processors

Compatible processors

Ryzen (supports Ryzen Threadripper PRO 7000 Series / 7000 Series)

Supported RAM

Max. size

1 TB

Technology

DDR5

Bus speed

7600 MHz (O.C.)

Supported RAM integrity check

ECC

Registered or buffered

Buffered, registered, 3DS-RDIMM

Special features

Four-channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220

Compatibility

High Definition Audio

LAN

Network controller

Dragon RTL8125BG / Marvell AQC113

Network Interfaces

10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion/Connectivity

Expansion slots

1 x CPU
4 x DIMM 288-pin
2 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x16 (8x mode)
1 x PCIe 5.0 x16 (8x mode)
1 x M.2 socket (2230 M.2 Key E slot)
2 x M.2 socket (2260/2280 M.2 Key M Slot)

Storage Interfaces

SATA 600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 slots: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 ports: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 - 2 x SlimSAS

Interfaces

2 x antenna
1 x USB-C 3.2 Gen2x2
1 x SPDIF output
1 x USB-C 3.2 Gen 2
4 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x LAN (2.5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
1 x Audio Line-Out - mini-jack
1 x microphone - mini-jack plug

Internal interfaces

1 x USB-C 3.2 Gen 2x2 - pin header
2 x USB 3.2 Gen 1 - pin header
4 x USB 2.0 - pin header
1 x SPI - pin header
1 x audio header
1 x speaker header
1 x serial pin header

Power connectors

Main power connector (24-pin), 2 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors, 6-pin ATX12V connector

Special features

BIOS type

AMI

BIOS Features

UEFI BIOS

Hardware features

ASRock A-Tuning, ASRock Polychrome RGB, ASRock Auto Driver Installer, ASRock Instant Flash, 18+3+3 Phase Power Design, 110A Power Stage, 20K black capacitors, BIOS FlashBack button, pre-attached I/O shield, Smart Power Stage (SPS) Technology, 2oz Copper PCB, aluminum heat sink design, Chipset heatsink, Enlarged Heatsink Armor, reinforced PCIe slots, Surface Mount Technology (SMT), Water Pump Header, 12 Layer PCB, Server-Grade Ultra-Low-Loss PCB, ASRock Full HD UEFI

Various

Accessories in the box

2 x M.2 screws, 2 spacers for M.2 socket, ASRock WiFi 2.4/5/6 GHz antenna, 2 thermistor cables

Cables included

4 x Serial ATA cables
1 x multi PSU adapter cable

Software included

ASRock A-Tuning, ASRock Dragon 2.5G LAN software

Labeling

FCC, ErP Ready, EuP Ready

Width

30.5 cm

Depth
