General
Device type

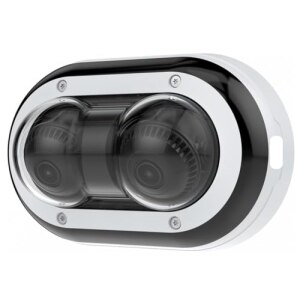

Network panoramic camera
Audio support
Yes: speaker coupling, two-way audio via edge-to-edge technology
Audio formats
LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS
Connection technology
Wired
Localization
Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States
Camera
Type
Color - Day & Night - fixed - Outdoor - Vandal resistant / Weather resistant
Digital video format
H.264B, H.264M, H.264H, H.265, MJPEG
Max. digital video resolution
3840 x 2160
Exposure range
2 sec - 1/16000 sec
Minimum illumination
0.19 lux - Color - F1.9 - 50 IRE
0 lux - B/W - F1.9 - 50 IRE
0 lux - IR
Digital video recording resolution
3840 x 2160, 640 x 360
Frame rate (max.)
30 frames per second
Performance features
IR corrected lens, remote zoom, remote focus, infrared blocking filter, Deep Learning Processing Unit (DLPU), -170°/+170° rotation, Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), variable bitrate, low latency mode, video streaming display, forensic WDR, 2D noise reduction technology, 3D noise reduction technology, dynamic text, image overlay, polygon privacy zone masking, Lightfinder technology, optimized IR, spectrum visualizer, advanced audio recording, INVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, pixel counter support, level grid, active tampering alarm, audio detection, signed firmware, brute force delay protection, digest authentication, Axis Edge Vault
Image sensor
Type
2 x 8 MP PS RGB CMOS 9.1 mm (1/2.8")
Lens construction
Focal length
3.2 mm - 8.1 mm
Lens aperture
F/1.9-3.2 fixed aperture
Minimum focusing distance
0.5 m
Horizontal field of view (degrees)
40 - 108
Vertical field of view (degrees)
23 - 55
Diagonal field of view (degrees)
46 - 131
Pan
Range (degrees)
-110 to +110
Tilt
Range (degrees)
-75 to +75
Interfaces
Network interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network protocols
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Expansion/Connectivity
Connectors
LAN - RJ-45
Audio input/Microphone - 3.5 mm jack
Supported memory cards
microSD card, microSDHC card, microSDXC card
Miscellaneous
Accessories included
Connection kit, weather protection, connector protection, cable glands
Markings
IEEE 802.1x, IEEE 802.1ar, CSA, UL/cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, MIL-STD-810H, NEMA 250 Type 4X, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.1ae, IEEE 802.3at, PVC-free, BFR-free, CFR-free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Color
White, NCS S 1002-B
Power supply
Required supply voltage
PoE Plus Class 4
Power supply device
10.2 Watts
Software / System requirements
Software included
AXIS Object Analytics, AXIS Video Motion Detection, 1-user license for Windows Decoder
Manufacturer warranty
Service and support
Limited warranty - 5 years
Environmental conditions
Min. operating temperature
-30 °C
Max. operating temperature
50 °C
Relative humidity (operating)
10 - 100% RH (condensing)
