General
Product Type

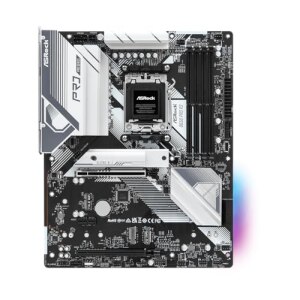

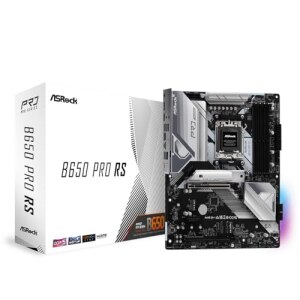

Motherboard - ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Supported RAM
Bus Clock
6200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Audio
Type
High Definition Audio (7.1-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 6 x USB 2.0 ¦ 2 x aerial ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x speaker - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
Hardware Features
ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, ASRock Steel Slots, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, 60A Smart Power Stage, Enlarged Heatsink Armor, 14+2+1 Phase Power Design
Miscellaneous
Included Accessories
3 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
ASRock A-Tuning, ASRock Dragon 2.5G LAN Software
Compliant Standards
EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3, UKCA, FCC Part 15 Subpart B
Product safety information
Manufacturer information:
ASRock Europe B.V.
Bijsterhuizen 11
Nijmegen, Niederlande, 6604
sales@asrock.nl
www.asrock.com
